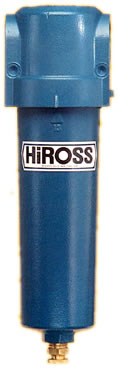

IPAC Condensate Separators

Centrifugal Separators
Sales, Service & Support



Materials of Construction:


  Cast Impellers
  Efficiency up to 99%
  Working Pressures of over 1000 PSIG Available
  Robust Construction
  ASME Stamp Available upon Request
  From 100-25,400 SCFM


Horizontal and Vertical Fabricated Separators for Highly Efficient Condensate Removal. Constructed of Heavy Gage Steel for Long Service Life.

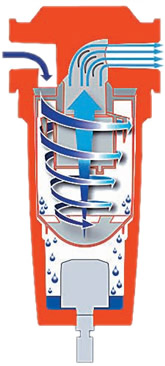

Why Use A Centrifugal Separator:
- Lowers Compressed Air or Gas Temperature
- Condenses Water Vapor

Design Benefits:
- Capacities up to 25,000 SCFM
- High Efficiency Seperation
- Minimum 200 PSI Rating as Standard
- Low Pressure Drop
- Long Service Life

If you have questions about how a our condensate separators will benefit your application, or would like a quote please contact us: 1-888-226-8522




Standard Horizontal:


  Model Capacity SCFM Air Connections (inches) Weight (LBS)
  IN OUT
  S01HAOO 200 1 1/2 NPT 1 1/2 NPT 16
  S02HAOO 300 2 NPT 2 NPT 20
  S03HAOO 400 2 1/2 NPT 2 1/2 NPT 31
  S04HAOO 600 2 1/2 NPT 2 1/2 NPT 56
  S4AHAOO 900 3 FLG 3 FLG 85
  S05HAOO 1200 4 FLG 4 FLG 120
  S06HAOO 2000 5 FLG 5 FLG 150
  S07HAOO 2500 8 FLG 6 FLG 205
  S08HAOO 2805 10 FLG 8 FLG 250
  S09HAOO 4400 10 FLG 8 FLG 325
  S10HAOO 5300 12 FLG 8 FLG 400
  S11HAOO 6500 14 FLG 8 FLG 475
  S12HAOO 8500 14 FLG 8 FLG 525
  S13HAOO 12700 18 FLG 10 FLG 625
  S14HAOO 16950 20 FLG 12 FLG 800
  S15HAOO 21170 24 FLG 12 FLG 875



Standard Vertical:


  Model Capacity SCFM Air Connections (inches) Weight (LBS)
  IN OUT
  S01VAOO 200 1 1/2 FLG 1 1/2 NPT 20
  S02VAOO 300 2 FLG 2 NPT 32
  S03VAOO 400 2 1/2 NPT 2 1/2 NPT 45
  S04VAOO 600 2 1/2 FLG 2 1/2 FLG 64
  S04AVOO 900 3 FLG 3 FLG 86
  S05VAOO 1200 4 FLG 4 FLG 132
  S06VAOO 2000 5 FLG 5 FLG 150
  S07VAOO 2500 8 FLG 6 FLG 192
  S08VAOO 2805 10 FLG 8 FLG 250
  S09VAOO 4400 10 FLG 8 FLG 300

Quotes, Engineering & Ordering Information: IPAC Heat Exchangers, please contact us: 1-888-226-8522
