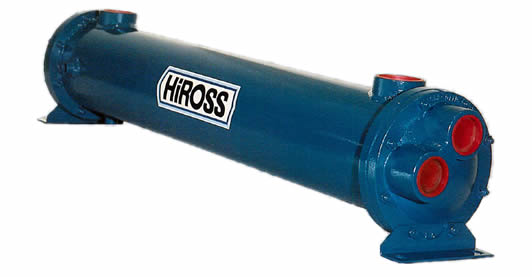

IPAC Oil Coolers

Heat Exchangers
Sales, Service & Support



Materials of Construction:


  Compact, Efficient Design
  Cast Iron Bonnets
  Copper Tubes
  Carbon Steel Shell
  Options of Cupro Nickel, Stainless Steel Tubes and Shell
  Option of Zinc Anodes
  Options of Admiralty Tubes


IPAC Oil Coolers for fluid to fluid and fluid to gas applications

Standard sizes from 14 to 72 inch lengths. Special Sizes available as well as non-standard Applications.

Designed for use in adverse conditions and for long life.



Typical Applications:

  Machine Tools
  Air Compressors
  Hydraulic Power Units
  Trim Coolers
  Transformer Oils

If you have questions about how IPAC Oil Coolers will benefit your application, or would like a quote please contact us: 1-888-226-8522


IPAC Oil Coolers

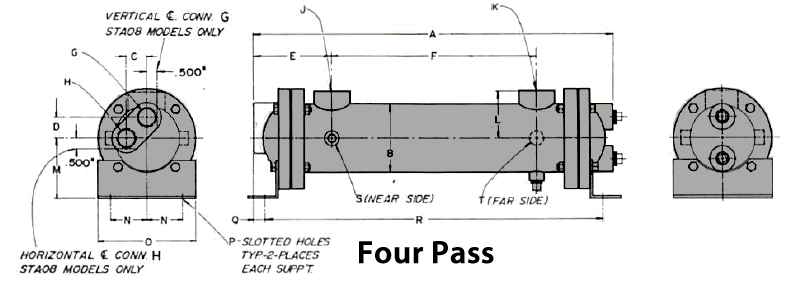

Dimensions in Inches:


  Model A B C D E F G H J K L M N O P Q R S T
  STA03014 17.187 3.25 1.0 1.0 3.567 10.0 3/4 3/4 1 1 2.312 2.75 1.625 4.5 7/16x3/4 .375 16.375 1/4 1/4
  STA03024 27.187 3.25 1.0 1.0 3.562 20.0 26.375
  STA04014 17.567 4.250 1.25 1.25 4.437 9.0 3/4 3/4 1.5 1.5 3.125 3.5 1.750 4.25 7/16x3/4 .625 16.625 1/4 1/4
  STA04024 27.562 19.0 26.625
  STA04036 39.562 31.0 38.625
  STA05014 18.437 5.250 1.688 1.688 4.812 9.0 1 1 1.5 1.5 3.437 4.0 2.0 5.25 1/2x3/4 .750 17.125 1/4 1/4
  STA05024 28.437 19.0 27.125
  STA05036 40.437 31.0 39.125
  STA06024 28.567 6.25 2.0 2.0 5.437 18.25 1.5 1.5 2 2 4.062 4.5 2.5 6.250 1/2x3/4 1.0 27.125 3/8 3/8
  STA06036 40.567 30.25 39.125
  STA06048 52.567 42.25 51.125
  STA06060 64.562 54.25 63.125
  STA08024 30.437 8.625 2.5 2.5 7.062 17.0 2 2 3 3 5.437 5.750 3.5 8.250 5/8x7/8 1.812 27.5 3/8 3/8
  STA08036 42.437 29.0 39.5
  STA08048 54.437 41.0 51.5
  STA08060 66.437 53.0 63.5
  STA08072 78.437 65.0 75.5


Quotes, Engineering & Ordering Information: IPAC Heat Exchangers, please contact us: 1-888-226-8522
IPAC Heat Exchangers
