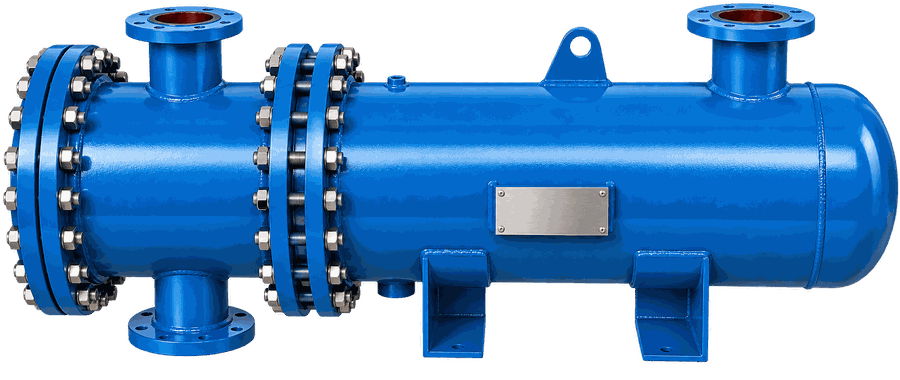

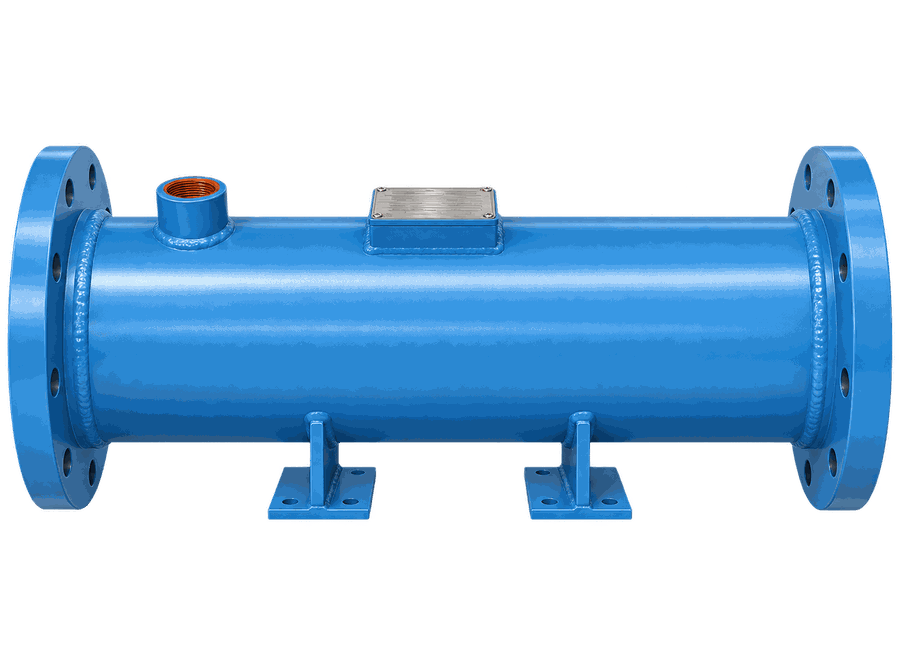

Unit pictured is representative of the series; dimensions and connections vary by part number - see the table below.
Construction
Tubes
- Copper as standard; stainless steel, admiralty and 90/10 copper-nickel on request. Helical extended-surface or plain tube.
Bundle
- Fixed as standard, removable as an option. The 59 Series small models end in 9 (W0039, W0049, W0059, W0069) where the 51 Series equivalents end in 5.
Shell and heads
- Carbon steel shell, 150# flanges standard with 300# and 600# for higher design pressures. Vertical or horizontal mounting.
Code
- ASME U-stamp available; TEMA construction; CRN and PED on request. Custom units to 2,000 PSIG and beyond are engineered to order.
Why the 59 Series
When the dryer, the process or the paint line needs drier air
- 5-10°F approach removes more water before the separator
- Largest catalogued sizes - W2000 to W5000 to 11,970 SCFM
- Same shell diameters as the 51 Series, eight inches longer
Water-Cooled 59 Series Part Numbers
| Part Number | SCFM | GPM @250°F | Air In/Out | Water In/Out | Weight | MAWP | Separator | Drain |
|---|---|---|---|---|---|---|---|---|
| W0039 | 37 | 1.5 | 1-1/2" NPT | 1/2" NPT | 20 lb | 300 PSIG | WS01 | SAC120 |
| W0049 | 69 | 1.7 | 2" NPT | 1/2" NPT | 26 lb | 300 PSIG | WS01 | SAC120 |
| W0059 | 120 | 2.4 | 2-1/2" NPT | 1/2" NPT | 34 lb | 300 PSIG | WS02 | SAC120 |
| W0069 | 210 | 3.9 | 3" NPT | 3/4" NPT | 53 lb | 300 PSIG | WS03 | SAC120 |
| W0090 | 210 | 3.9 | 2-1/2" FLG | 3/4" NPT | 69 lb | 200 PSIG | S04H | SAC120 |
| W0140 | 320 | 6.7 | 3" FLG | 3/4" NPT | 102 lb | 200 PSIG | S04H | SAC120 |
| W0180 | 460 | 7.7 | 4" FLG | 1" NPT | 137 lb | 200 PSIG | S04H | SAC120 |
| W0230 | 550 | 10.0 | 4" FLG | 1-1/4" NPT | 144 lb | 200 PSIG | S04H | SAC120 |
| W0330 | 720 | 12.5 | 5" FLG | 1-1/4" NPT | 188 lb | 200 PSIG | S4AH | SAC120 |
| W0380 | 955 | 15.4 | 5" FLG | 1-1/2" NPT | 205 lb | 200 PSIG | S05H | SAC120 |
| W0490 | 1,145 | 25.1 | 8" FLG | 2" NPT | 297 lb | 200 PSIG | S06H | SAC120 |
| W0710 | 1,915 | 38.5 | 10" FLG | 2-1/2" NPT | 440 lb | 200 PSIG | S06H | SAC120 |
| W0980 | 2,630 | 53.0 | 10" FLG | 2-1/2" NPT | 450 lb | 200 PSIG | S08H | SAC100 |
| W1400 | 3,635 | 63.5 | 12" FLG | 2-1/2" NPT | 660 lb | 200 PSIG | S09H | SAC100 |
| W1700 | 4,315 | 72.1 | 14" FLG | 2-1/2" NPT | 850 lb | 200 PSIG | S10H | SAC100 |
| W2000 | 4,880 | 81.7 | 14" FLG | 4" FLG | 950 lb | 200 PSIG | S12H | SAC100 |
| W3000 | 7,180 | 135 | 18" FLG | 5" FLG | 1,250 lb | 200 PSIG | S13H | SAC100 |
| W4000 | 9,675 | 188 | 20" FLG | 6" FLG | 1,600 lb | 200 PSIG | S14H | SAC100 |
| W5000 | 11,970 | 222 | 20" FLG | 8" FLG | 1,950 lb | 200 PSIG | S15H | SAC100 |
SCFM and GPM are at a 250°F inlet, 100 PSIG, 80°F inlet water. The part page carries the 200, 300 and 400°F cooling water figures. Separator and drain are the recommended IPAC companions.
Applications
What We Need to Quote
A selection comes together quickly once the duty is stated.
- Compressor SCFM and pressure, or the heat load
- Inlet temperature and the cooling water or ambient temperature
- Required outlet temperature
- Design pressure and any code stamp
Replacing an Existing Unit
Where a unit is being replaced, the nameplate does most of the work.
- IPAC or HiROSS model number, exactly as stamped
- National Board number where one is fitted
- Connection sizes and orientation
