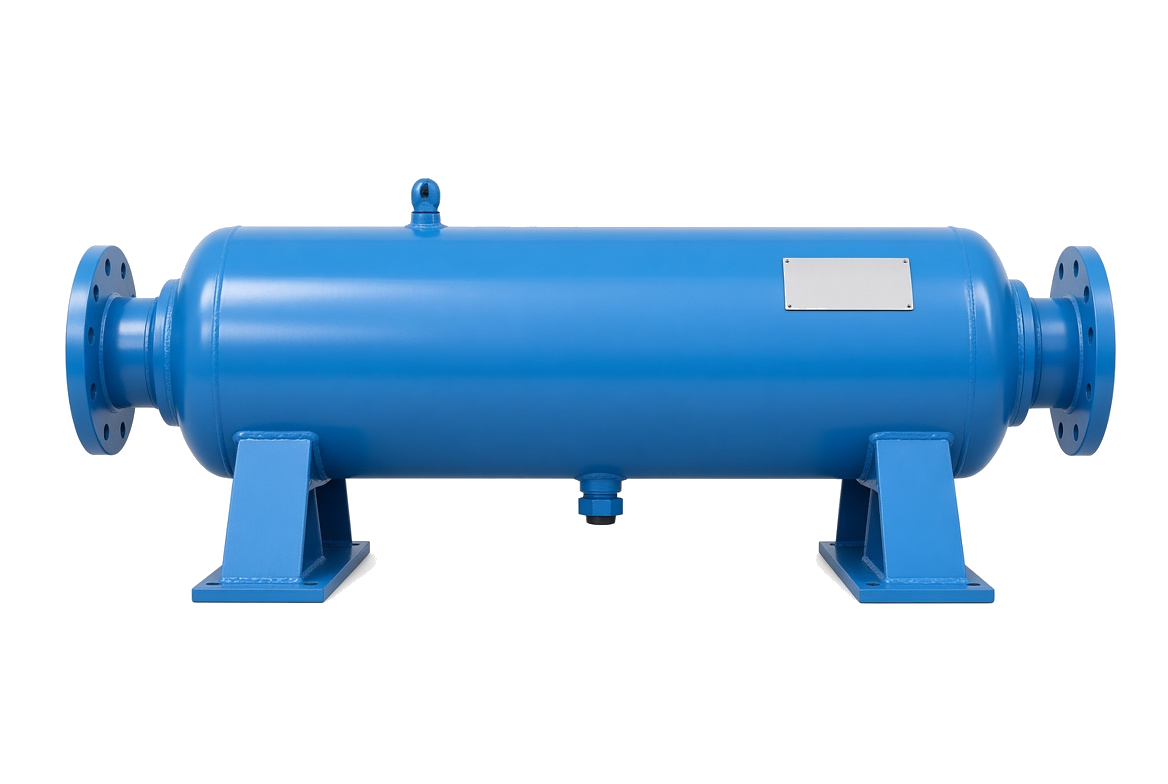

Unit pictured is representative of the series; dimensions and connections vary by part number - see the table below.
Construction
Small sizes
- WS01, WS02 and WS03 cover 127 to 675 SCFM with 3/4 to 2 inch NPT connections. They replaced the original cast aluminum S01C to S03C bodies with the patented Quick-Loc closure.
Fabricated sizes
- S04H through S15H are heavy-gauge steel vessels with 150# flanged connections from 2-1/2 to 24 inches. The S4A is an intermediate size between the S04 and S05.
Internals
- Fixed impeller and anti-re-entrainment baffle. Nothing rotates and nothing wears, so the pressure drop is low and stays low.
Drain
- Bottom drain connection sized for the SAC120 trap up to the S07H and the SAC100 from the S08H up. Stainless steel construction is available for corrosive condensate.
Why a horizontal separator
Where the aftercooler outlet runs horizontally and headroom is short
- Inlet and outlet on one axis - drops into a straight run
- Sized to match every IPAC aftercooler model
- No moving parts, no element to change
Horizontal Separators Part Numbers
| Part Number | SCFM | Height | Width | Dim C | Inlet | Outlet | Weight | Drain Trap |
|---|---|---|---|---|---|---|---|---|
| WS01 | 127 | 11-13/16" | 4-15/16" | 10-5/16" | 3/4" NPT | 3/4" NPT | 7 lb | SAC120 |
| WS02 | 427 | 18-15/16" | 5-5/16" | 16-15/16" | 1-1/2" NPT | 1-1/2" NPT | 11 lb | SAC120 |
| WS03 | 675 | 23-1/4" | 7-7/8" | 20-9/16" | 2" NPT | 2" NPT | 14 lb | SAC120 |
| S04HAUH0 | 900 | 26" | 15" | 19-1/4" | 2-1/2" FLG | 2-1/2" FLG | 56 lb | SAC120 |
| S4AHAUH0 | 1,400 | 29" | 16" | 21-1/4" | 3" FLG | 3" FLG | 85 lb | SAC120 |
| S05HAUH0 | 1,500 | 35-1/8" | 20" | 25-7/8" | 4" FLG | 4" FLG | 120 lb | SAC120 |
| S06HAUH0 | 2,800 | 38-3/4" | 22" | 28-3/4" | 5" FLG | 5" FLG | 200 lb | SAC120 |
| S07HAUH0 | 3,600 | 42" | 23" | 30-1/2" | 6" FLG | 6" FLG | 250 lb | SAC120 |
| S08HAUH0 | 3,900 | 45-3/4" | 26" | 33-3/4" | 8" FLG | 8" FLG | 350 lb | SAC100 |
| S09HAUH0 | 5,800 | 50-1/4" | 30" | 36-3/4" | 8" FLG | 8" FLG | 400 lb | SAC100 |
| S10HAUH0 | 6,800 | 58-3/4" | 30" | 43" | 8" FLG | 8" FLG | 750 lb | SAC100 |
| S11HAUH0 | 7,800 | 66-1/2" | 34-1/2" | 49-1/4" | 14" FLG | 8" FLG | 900 lb | SAC100 |
| S12HAUH0 | 10,200 | 72-1/4" | 36-1/2" | 51-3/4" | 14" FLG | 8" FLG | 1,100 lb | SAC100 |
| S13HAUH0 | 14,000 | 87-1/4" | 44-1/2" | 64-1/4" | 18" FLG | 10" FLG | 2,000 lb | SAC100 |
| S14HAUH0 | 17,000 | 96-3/4" | 50" | 70-1/4" | 20" FLG | 12" FLG | 3,100 lb | SAC100 |
| S15HAUH0 | 25,000 | 120-1/2" | 57" | 89-3/4" | 24" FLG | 12" FLG | 4,200 lb | SAC100 |
| S01CB0H0 | 100 | 9-3/4" | 3-1/2" | 8-3/4" | 3/4" NPT | 3/4" NPT | 2 lb | SAC120 |
| S02CB0H0 | 300 | 13-3/4" | 4-13/32" | 12-1/2" | 1-1/2" NPT | 1-1/2" NPT | 4 lb | SAC120 |
| S03CB0H0 | 550 | 21-3/4" | 5-25/32" | 20-3/32" | 2" NPT | 2" NPT | 12 lb | SAC120 |
Capacity is at 100 PSIG. H is overall height, W the body width and C the centreline dimension, in inches. Drain Trap is the recommended IPAC SAC model. The last three rows, S01CB0H0 to S03CB0H0, are the 1987 HiROSS cast aluminum sizes that the WS01 to WS03 replaced - listed so a nameplate can be matched.
Applications
What We Need to Quote
A selection comes together quickly once the duty is stated.
- Compressor SCFM and pressure, or the heat load
- Inlet temperature and the cooling water or ambient temperature
- Required outlet temperature
- Design pressure and any code stamp
Replacing an Existing Unit
Where a unit is being replaced, the nameplate does most of the work.
- IPAC or HiROSS model number, exactly as stamped
- National Board number where one is fitted
- Connection sizes and orientation
