IPAC| Product | Capacity | Rating | Orientation |
|---|---|---|---|
| Centrifugal Separator | 100 SCFM | 230 PSIG | Horizontal |

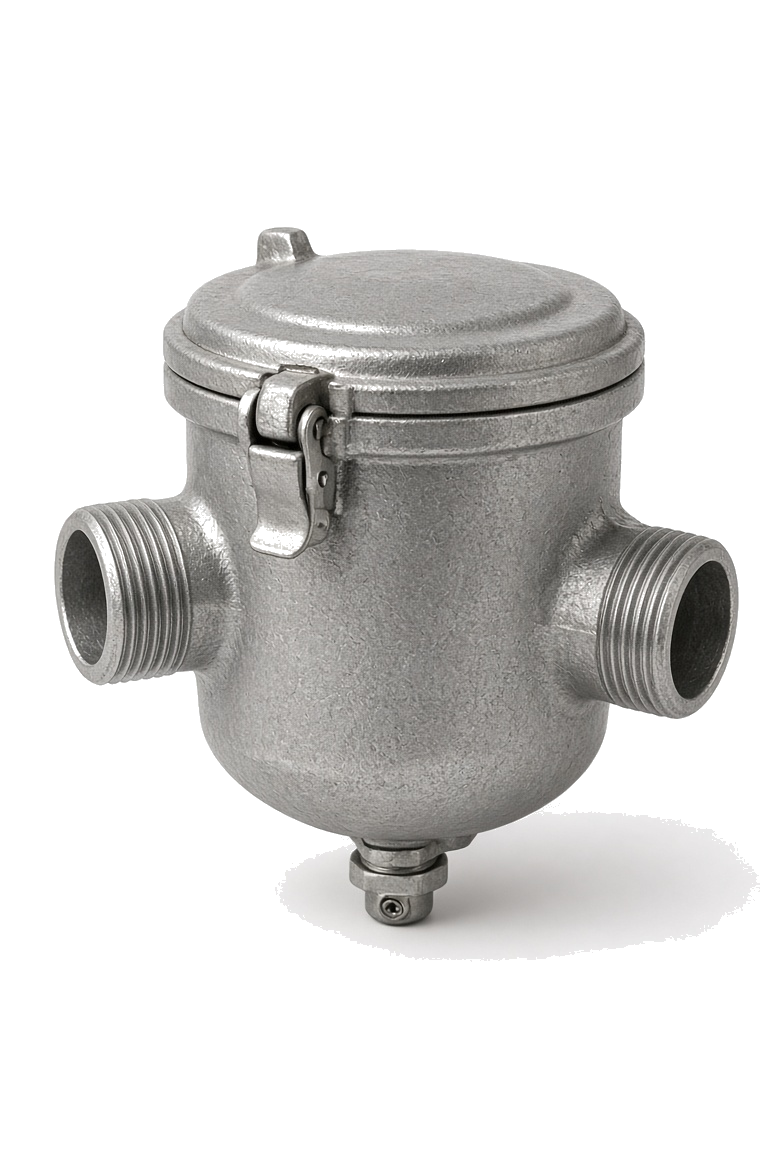

Note: Unit pictured is representative of the standard centrifugal moisture separator and may not exactly depict p/n S01CB0H0 as shown on this page.
Description
The S01CB0H0 is an IPAC horizontal centrifugal moisture separator rated for 100 SCFM at 100 PSIG, with a 3/4" NPT inlet and 3/4" NPT outlet, 9-3/4" high and weighing approximately 2 lb. It removes 99 percent of entrained water down to 20 percent of rated flow and pairs with the IPAC SAC120 automatic drain trap.
Superseded. The S01CB0H0 is a HiROSS-era cast aluminum separator (Bulletin CS/0987, 1987). It is no longer built; the current replacement is the WS01, which carries a higher rated flow in the same connection size. Figures on this page are the original catalogue values for identifying the unit on a nameplate.
Product Overview
Part Number:
S01CB0H0
Series:
Horizontal Centrifugal Separators
Brand:
IPAC
Type:
Centrifugal Moisture Separator
Configuration & Size
SCFM:
100
Height:
9-3/4"
Width:
3-1/2"
Dim C:
8-3/4"
Inlet:
3/4" NPT
Outlet:
3/4" NPT
Weight:
2 lb
Drain Trap:
SAC120
Also Written As:
S01C, S01CB0
Materials of Construction
- Body: Cast aluminum, Quick-Loc closure
- Internals: Fixed impeller, anti-re-entrainment baffle
- Option: Stainless steel
Rating
- Max Working Pressure: 230 PSIG
- Efficiency: 99% at 20-100% of rated flow
- Rated At: 100 PSIG
Alternate Part Numbers
The S01CB0H0 is also found on nameplates and in compressor parts lists as S01C, S01CB0. These are the same unit; the differences are long-form option codes, HiROSS-era designations or reseller transcriptions. See the Legacy & Alternate Numbers page.
