IPAC SAC automatic float drain trap, cast body with blow-down valve
  • IPAC SAC automatic float drain trap, cast body with blow-down valve

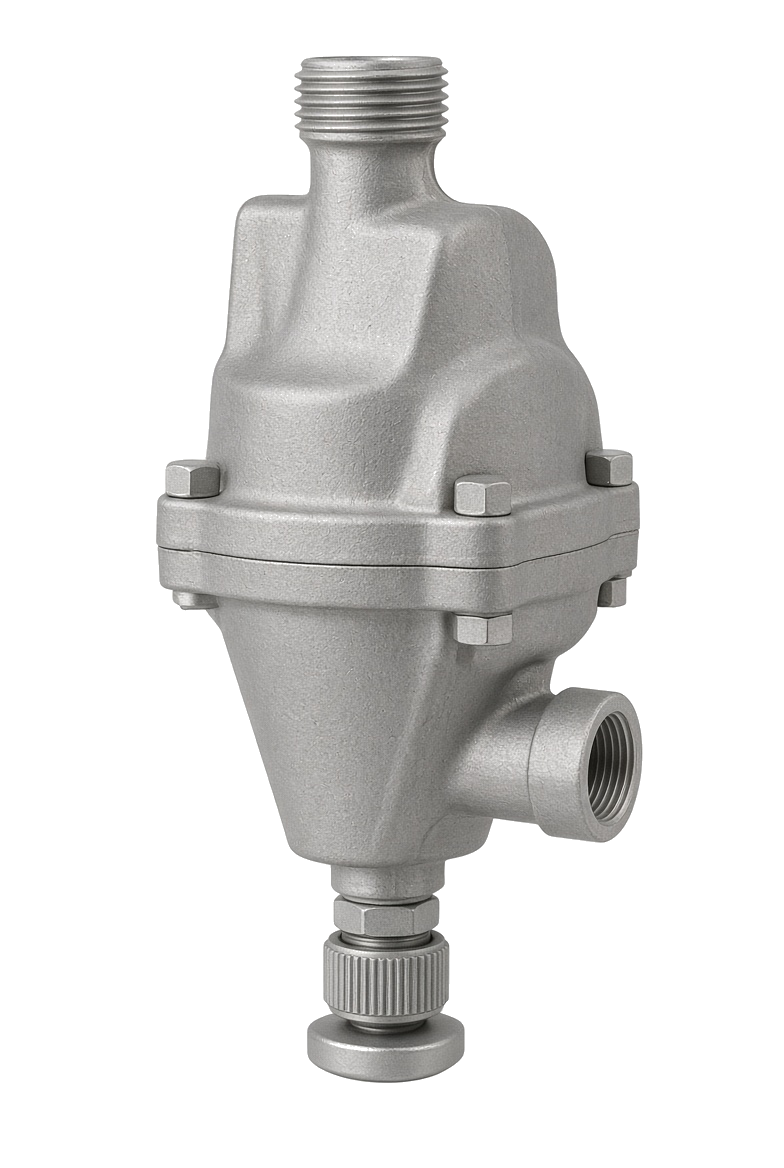

  • IPAC SAC automatic drain trap, side view
  • IPAC SAC automatic drain trap fitted to the drain leg of a moisture separator

Unit pictured is representative of the series; dimensions and connections vary by part number - see the table below.

IPAC SAC Automatic Drain Traps

PRODUCTSTYLERATINGTYPE
Drain TrapFloat / Lever230 PSIGAutomatic

Every aftercooler and separator needs somewhere for the water to go. The SAC trap collects condensate in a float chamber and discharges it automatically as the float rises, without losing compressed air. Discharge is upward, so the trap can sit below the separator and lift the condensate to a drain line. An external hand valve lets the operator blow the trap down without taking it apart, and an optional vent adapter equalises pressure where the trap is fed from a long drain leg.

Product Overview

Series:
SAC120, SAC100, SAC010
Type:
Float / lever automatic drain trap
Discharge:
Upward, with hand blow-down
Sizes:
1/2 in. and 1 in. FPT

Rating

  • Max Working Pressure: 230 PSIG aluminum body
  • Higher Pressures: 440, 730 and 1,010 PSIG in steel and stainless bodies
  • Capacity: 63-240 gal/hr by model and pressure
  • Body: Aluminum, cast iron, carbon steel, stainless
SEE ALL 3 PART NUMBERS

Construction

SAC120

  • 1/2 inch FPT aluminum body, 1.9 lb, for systems up to about 500 CFM. This is the trap paired with every A Series air-cooled aftercooler and every separator through the S07.

SAC100

  • 1 inch FPT aluminum body, 4.2 lb, for systems above 500 CFM and the S08 separator and larger.

SAC010

  • Stainless steel body for corrosive condensate and high-pressure systems. Call us for the pressure class.

Options

  • Vent adapter, cast iron body at 230 PSIG, carbon steel bodies to 1,010 PSIG.
IPAC SAC automatic drain trap fitted to the drain leg of a moisture separator

Why an automatic trap

A separator that is not drained is a separator that is not working

  • Discharges condensate without venting compressed air
  • Upward discharge lifts to a drain line
  • Blow-down valve for a daily check without tools
Request a Quote

Automatic Drain Traps Part Numbers

Part Number Connection Body MAWP Capacity Weight For Systems
SAC120 1/2" FPT Aluminum 230 PSIG 63-190 gal/hr (25-230 PSI) 1.9 lb Up to 500 CFM
SAC100 1" FPT Aluminum 230 PSIG 90-240 gal/hr (25-230 PSI) 4.2 lb Over 500 CFM
SAC010 1/2" or 1" FPT Stainless Steel Call for rating (to 1,010 PSIG in steel bodies) Call for rating Call for rating High pressure / corrosive service

Capacity is in gallons per hour across the working pressure range. Every IPAC aftercooler and separator model has a recommended SAC trap - see its part page.
