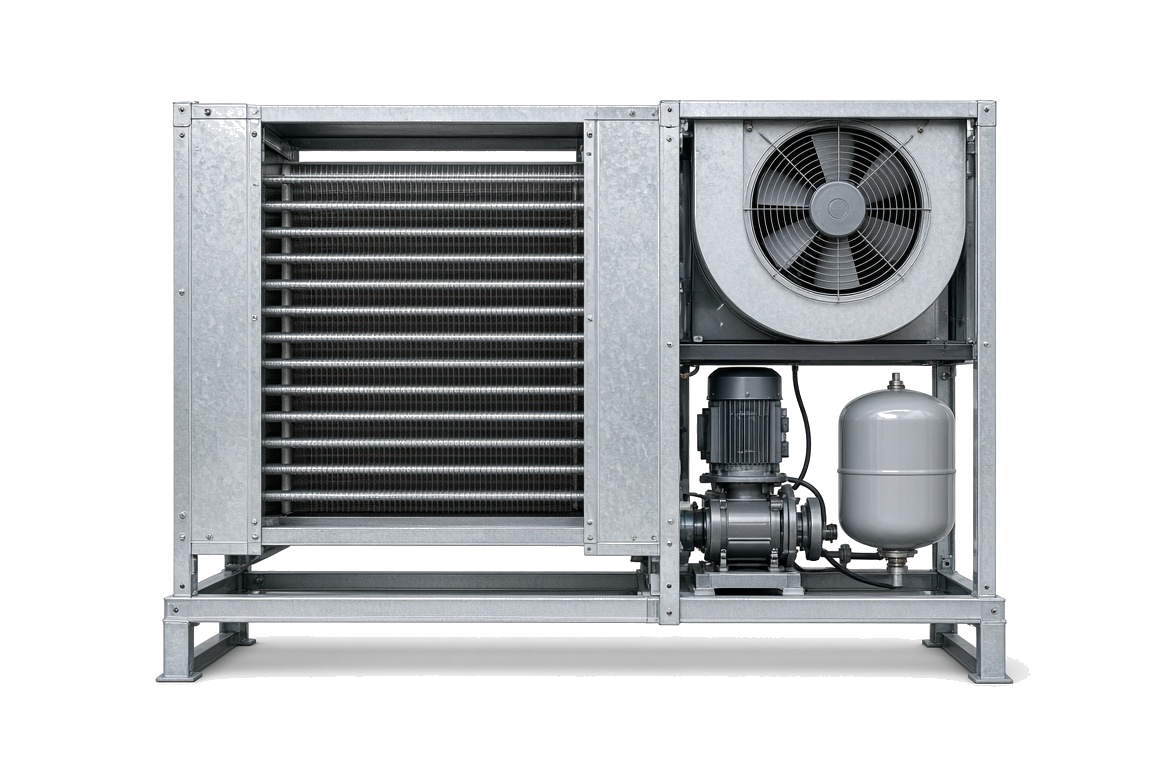

Unit pictured is representative of the series; dimensions and connections vary by part number - see the table below.
Construction
Coil
- Copper tubes, aluminum fins, multi-pass. The size digits in the model number (08, 12, 16 ... 75) follow the same core sizes as the A Series air-cooled aftercoolers.
Pump and controls
- Close-coupled centrifugal pump with a starter in a NEMA enclosure, an expansion tank and a three-way bypass valve for temperature control.
Frame
- Steel or aluminum casing on a structural base; frame letter A, B or C in the model number indicates the frame size.
Options
- Glycol service, low-ambient fan control, larger pumps for longer runs, dual-pump stations and custom capacities.
Why a closed circuit
Keep the treated water in, keep the plant water out
- No tower, no evaporation, no water treatment drift
- Outdoor installation with glycol protection
- One package: pump, coil, controls and expansion tank
Packaged Coolers Part Numbers
| Part Number | BTU/hr | GPM | Pump Head | Pump HP | Fan HP | Water Conn. | Weight |
|---|---|---|---|---|---|---|---|
| WAC0830A | 62,000 | 5 | 50 ft | 0.30 | 0.25 | 1" NPT | 214 lb |
| WAC1230B | 112,000 | 9 | 100 ft | 1.00 | 0.75 | 1-1/4" NPT | 362 lb |
| WAC1630B | 125,000 | 10 | 100 ft | 1.00 | 0.75 | 1-1/4" NPT | 392 lb |
| WAC2430B | 175,000 | 15 | 100 ft | 1.00 | 1.5 | 1-1/4" NPT | 716 lb |
| WAC3230B | 215,000 | 17 | 100 ft | 1.00 | 1.5 | 1-1/4" NPT | 767 lb |
| WAC4030B | 240,000 | 19 | 100 ft | 1.00 | 1.5 | 1-1/4" NPT | 825 lb |
| WAC4830C | 370,000 | 30 | 140 ft | 5.00 | 2 x 1.5 | 1-1/2" NPT | 1,614 lb |
| WAC6430C | 430,000 | 34 | 140 ft | 5.00 | 2 x 1.5 | 1-1/2" NPT | 1,720 lb |
| WAC7530C | 476,000 | 38 | 140 ft | 5.00 | 2 x 1.5 | 1-1/2" NPT | 1,786 lb |
Capacity at 90°F ambient with 140°F water in and 115°F out. Pump head is the available head at the connections after the internal coil.
Applications
What We Need to Quote
A selection comes together quickly once the duty is stated.
- Compressor SCFM and pressure, or the heat load
- Inlet temperature and the cooling water or ambient temperature
- Required outlet temperature
- Design pressure and any code stamp
Replacing an Existing Unit
Where a unit is being replaced, the nameplate does most of the work.
- IPAC or HiROSS model number, exactly as stamped
- National Board number where one is fitted
- Connection sizes and orientation
