IPAC Automatic Drain Traps

Compressed Air and Gas Condensate Drain Traps
Sales, Service & Support



Materials of Construction:


  Heavy Duty Aluminum Construction
  Condensate Discharge Upward
  Accessible Internal Bypass
  Flushable While in Service
  * Models Available with Vent Adapters
  1/2" or 1" NPT Connections

Design Benefits:
- Heavy Duty Construction
- High Efficiency Upward Discharge Condensate
- Accessible Internal By-Pass
- Flushable While in Service

If you have questions about how a our automatic drain traps will benefit your application, or would like a quote please contact us: 1-888-226-8522




Automatic Drain Traps:


  Model Body Material Maximum Working Pressure (PSIG) Weight (LBS)

  SAC05AAO Aluminum 150 2
  SAC05AAV* Aluminum 150 3
  SAC10BCO Cast Iron 230 17
  SAC10BCV* Cast Iron 230 18
  SAC10CFO Carbon Steel 440 18
  SAC10DFO Carbon Steel 730 18
  SAC10EFO Carbon Steel 1010 18
  SAC10CXO Stainless Steel 440 18
  SAC10DXO Stainless Steel 730 18
  SDAC10EXO Stainless Steel 1010 18

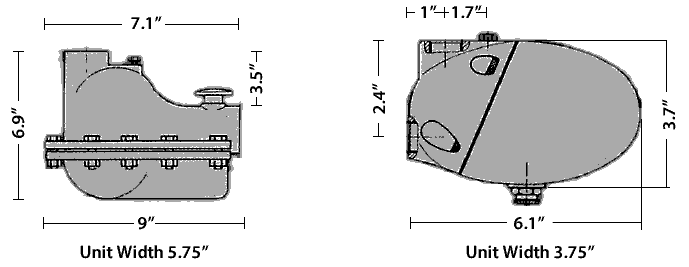

Dimensions:



Quotes, Engineering & Ordering Information: IPAC Heat Exchangers, please contact us: 1-888-226-8522
